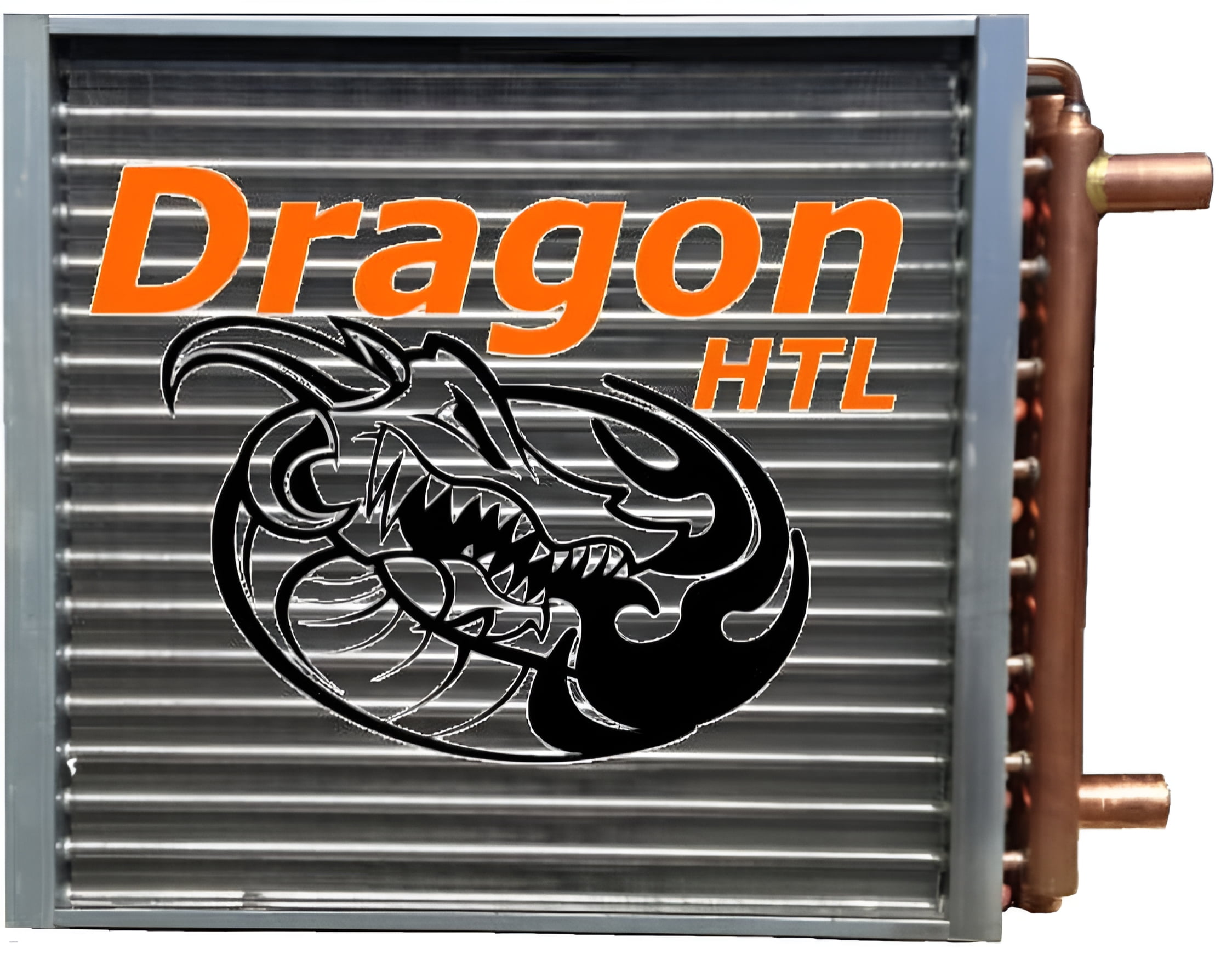

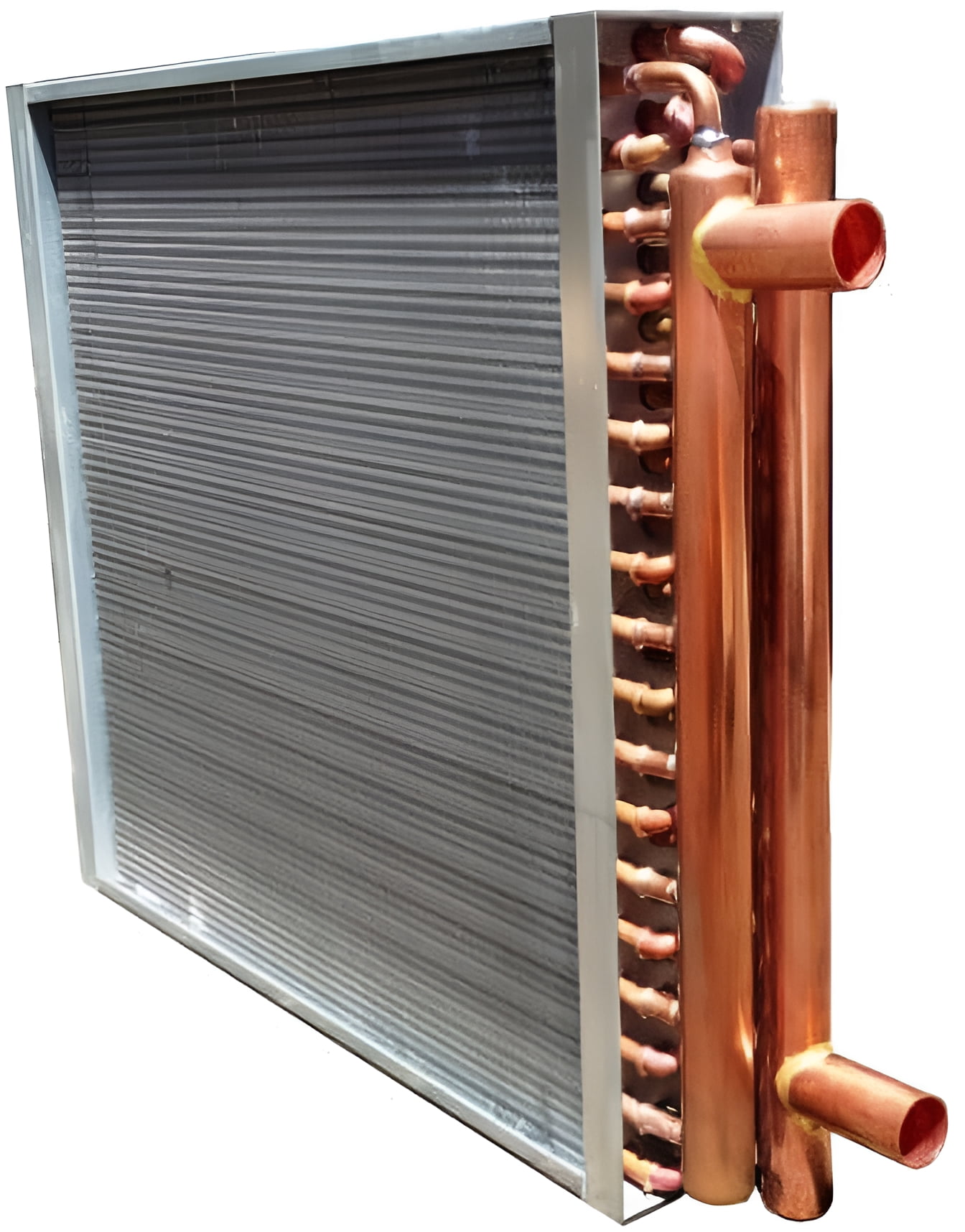

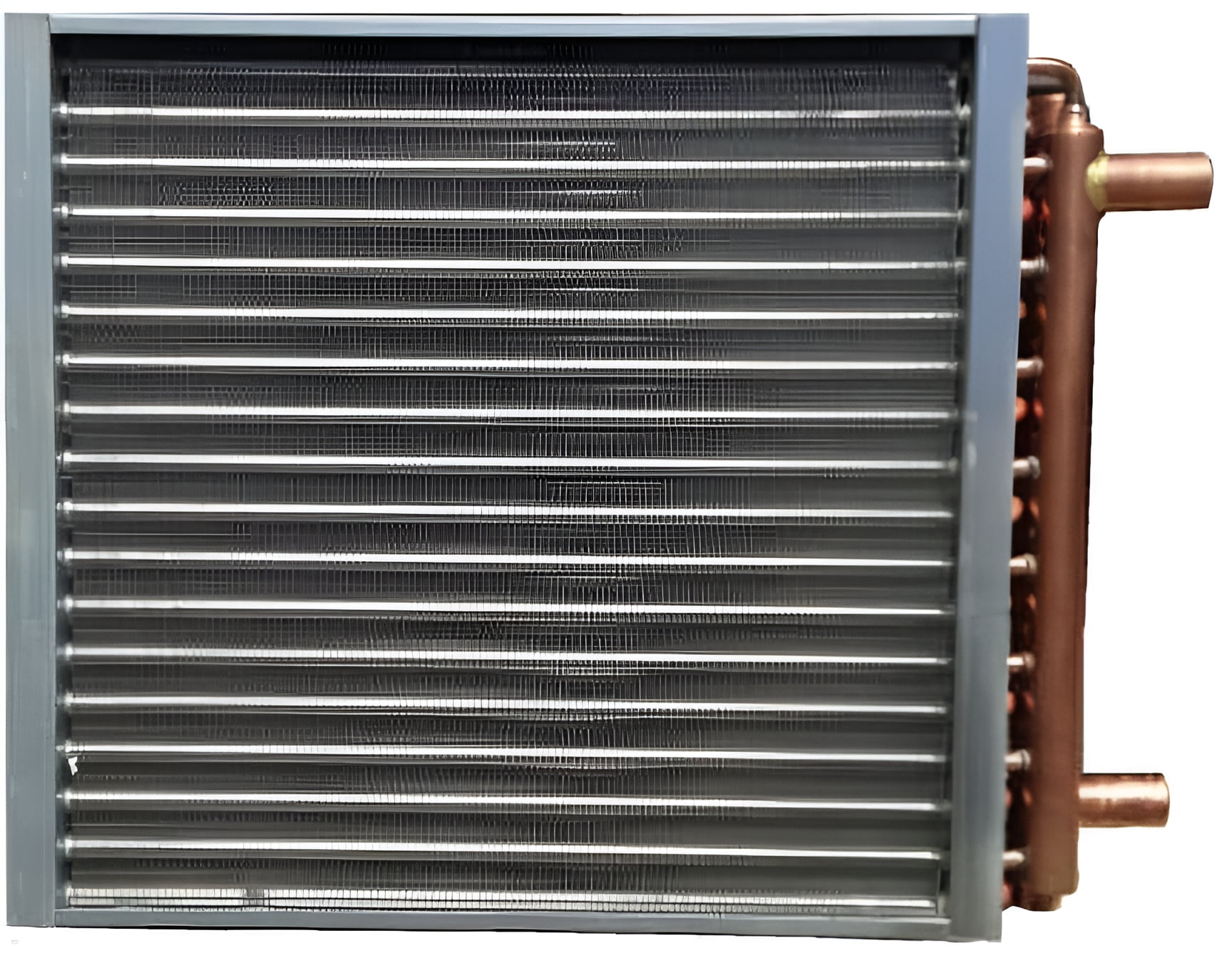

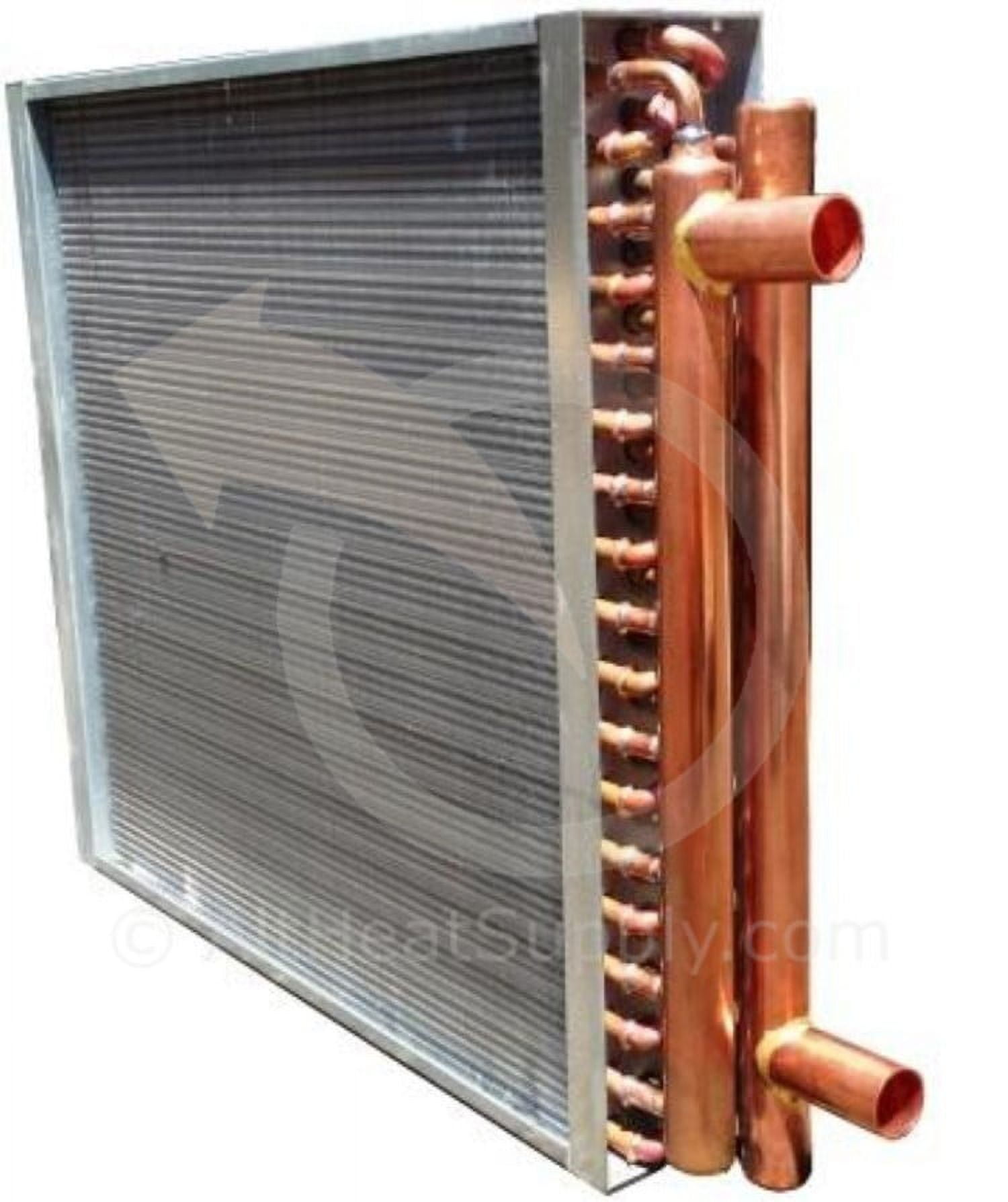

18" x 18" Water to Air Heat Exchanger, 120,000 BTU (Dragon Quality)

Product Description<p>Our NEW Dragon HTL Water to Air Heat Exchangers are of the Highest Quality products on the market and great fit for a variety of heating and cooling applications. These compact units are designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with a high density of aluminum fins. These fins are spaced such that the fin density is 12 fins per inch. This design enables heating loads of 50,000-60,000 Btu per square foot. Despite such high fin density, there is minimal flow resistance through these water to air heat exchanger coils.</p>Typical Applications<ul><li>Residential Heating</li><li>Apartment Buildings and Condominiums</li><li>Hybrid Systems</li><li>Air Conditioning</li><li>Dehumidification</li></ul><p>&nbsp;<br>Features and Specs</p><ul><li>Tube Coil is manufactured entirely of 3/8" seamless copper</li><li>Plate Fin is made from Aluminum</li><li>The core housing is made from galvanized steel</li><li>The header is made from Copper and has a 1" ID</li><li>The Tubeside is rated at 175 psig/350F</li><li>BTU: 120,000</li><li>99.9% Pure L Grade Copper<br></li><li>Plate Fin Spacing is 12 per inch</li><li>All connections are 1 inch ID Solder</li><li>Ports long enough to work with SharkBite Fittings</li><li>Units kept in stock for immediate delivery</li></ul>

• Designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with a high density of aluminum fins.
• This design enables heating loads of 50,000-60,000 Btu per square foot.
• Applications: Residential Heating; Apartment Buildings and Condominiums; Hybrid Systems; Air Conditioning; Dehumidification

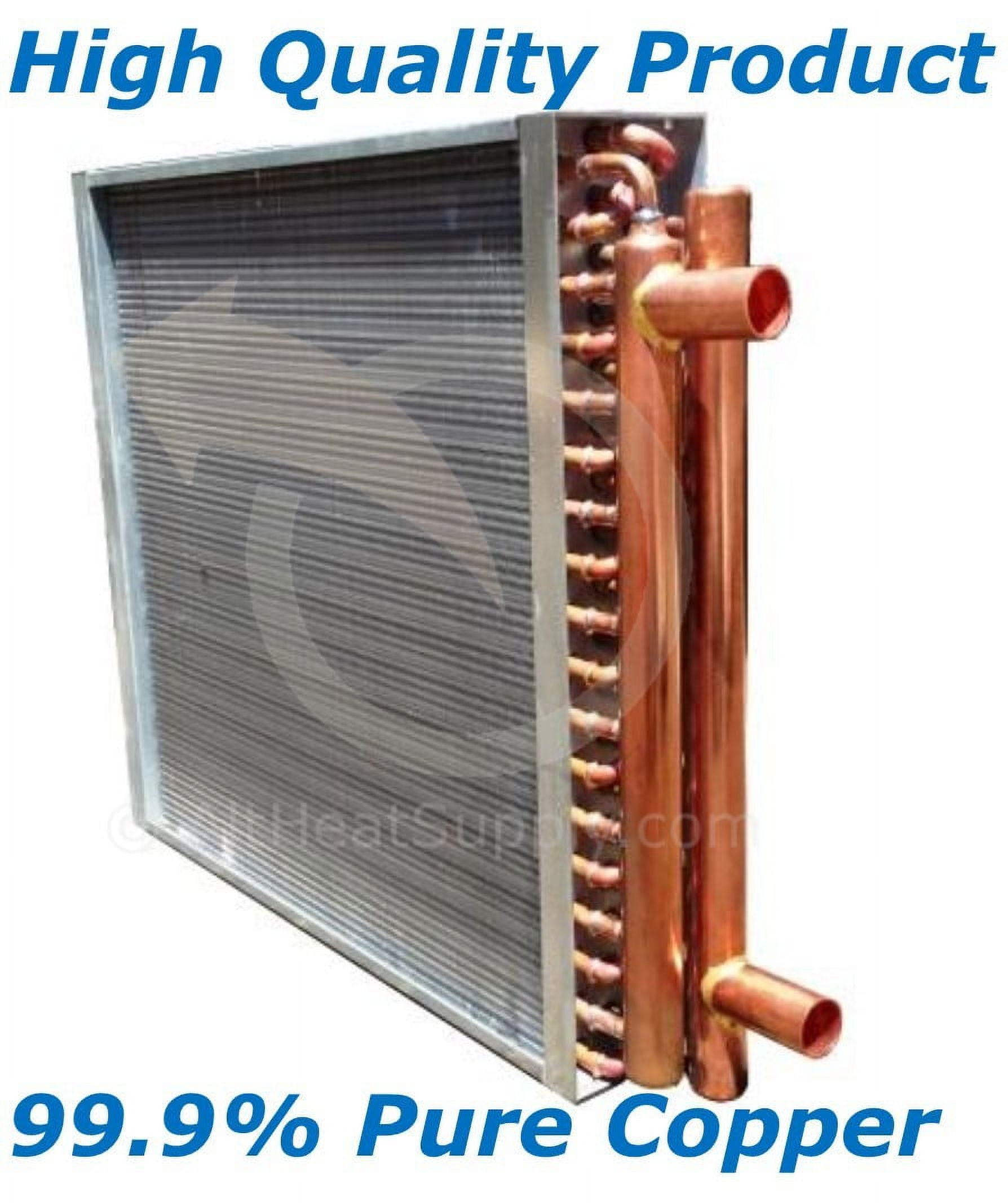

• 99.9% Pure L Grade Copper
• Dragon Quality Products
